5940G |Higher output·Faster·Better quality use
Large character printing scheme

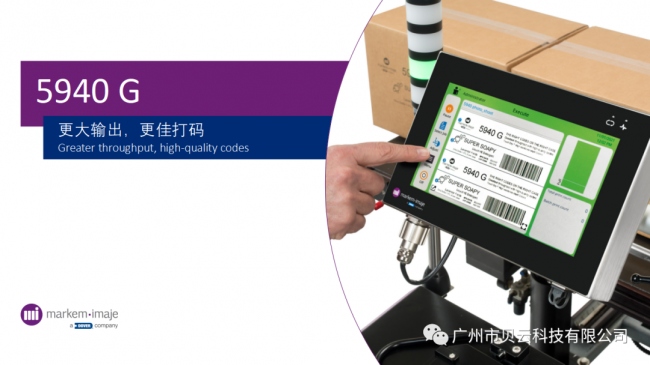

10-inch touchscreen user interface
As a sustainable high-resolution large character jet printing solution, the 5940G has raised print quality, print accuracy, efficiency and total cost of ownership (TCO) to new standards, achieving faster printing of large areas., beautiful graphics, and large character information that complies with specifications such as GS1-128.

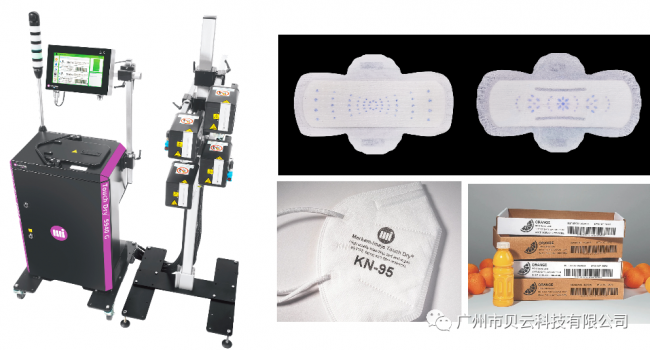

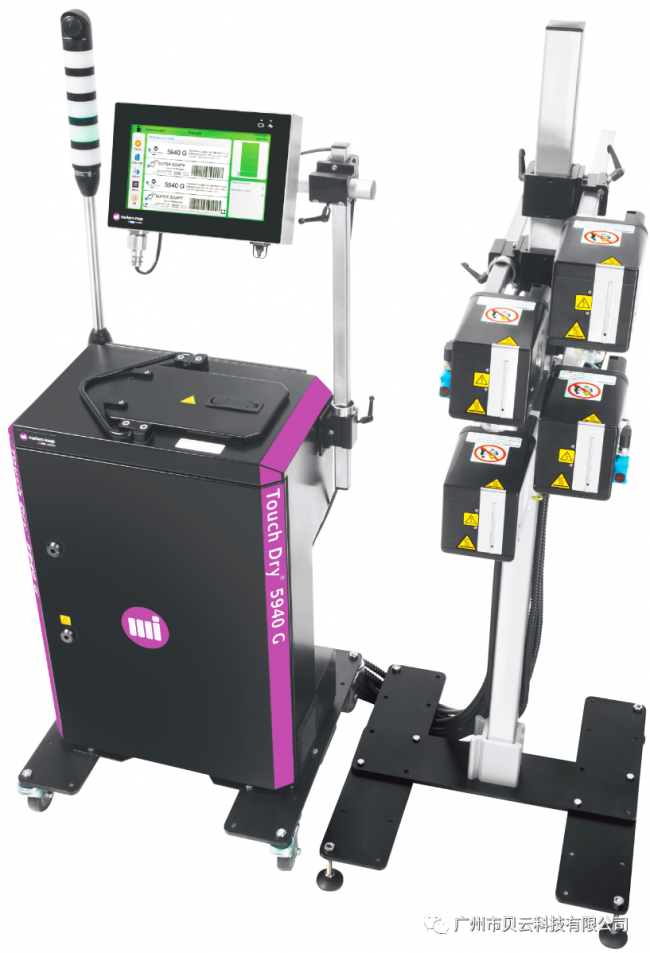

5940G-4PH with four-nozzle configuration
5400G performance + higher spray printing quality (barcode C level or higher), 15 minutes of single maintenance time, faster heating, 10 "touch screen, more inputs and outputs, etc. significantly improved usability; Barcode and QR code scanning guns can be connected to identify and verify, and 5 customizable inputs and 5 outputs are standard. Optional additional 5 customizable inputs and 5 outputs. Can be integrated with corporate databases via PLC.
main characteristics
10.1"Touch screen interface
³-½ "(7-12mm) jet margins are shortened
5 sets of programmable input and output standard
75% increase in ink tank capacity *, and ink can be added without stopping
67% increase in ink heating speed
Intelli 'Flow provides the most stable print quality and efficient dust prevention
Hand-held and fixed scanning guns can be connected
15-minute average maintenance time design
IP54 Industrial Protection Level
High print quality
High-quality barcodes, QR codes and pictures
To print premium logos in GS1-128 specification Grade C or higher, trust our touch-dry Touch Dry® hot melt inks
Intelli 'Flow technology prevents ink and dust from accumulating on the nozzle through a novel airflow design, ensuring stable and reliable coding quality, and spraying sharp and clear information and graphics.
Sustainable, long-term return equipment investment
Environmentally friendly-hot melt inks do not contain liquid solvents, have no VOC volatilities, are clean, sanitary, safe and environmentally friendly.

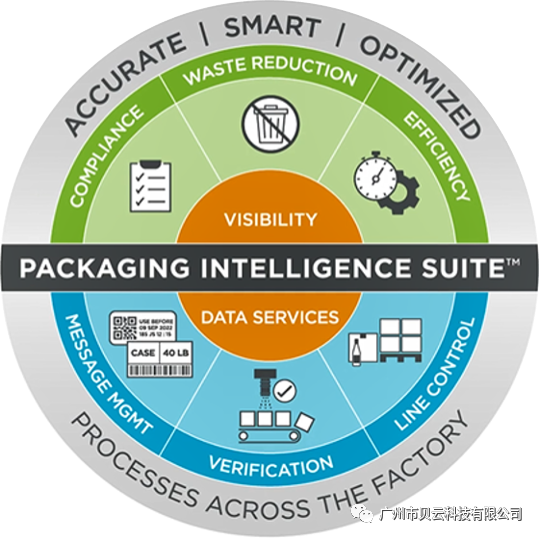

Compatible with Systech Packaging Intelligence Suite™ Packaging Intelligence Suite, easy identification management, provides traceability and improves efficiency.

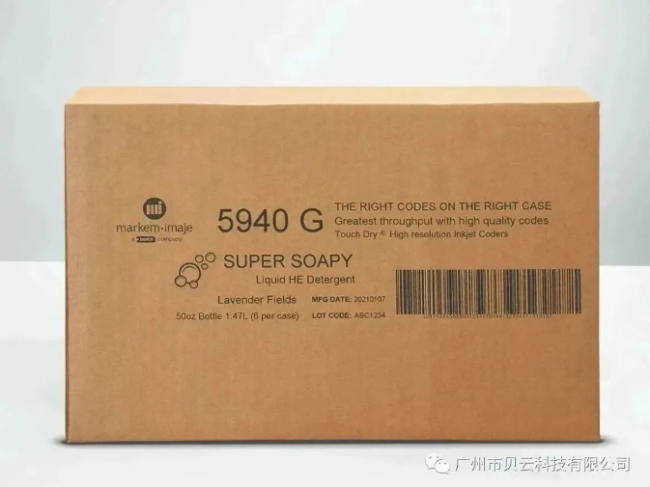

Instant printing cartons replace pre-printing and labeling
Designs to improve usability and efficiency
Maximize normal operation time-easy-to-maintain design (takes an average of 15 minutes) and reliable and durable
IP54 protection level controllers have higher dust resistance and can also be used in harsh industrial environments (0-40 ℃)
IDM ink storage chamber heating technology allows hot melt ink to heat up faster, saving more production time

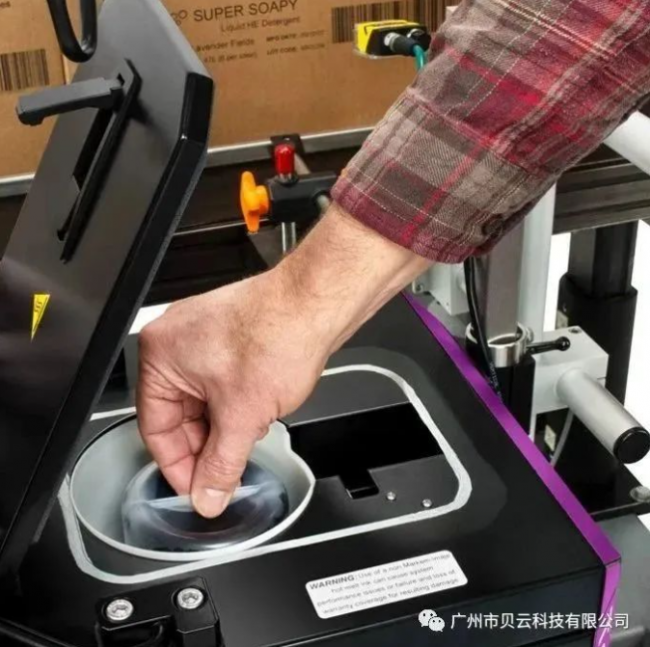

Add ink online! Solid ink blocks that require no agitation and no solvent can be added without stopping, resulting in fewer interventions and improved productivity
Improved ink tank heating and increased automatic start-up, shortening start-up time

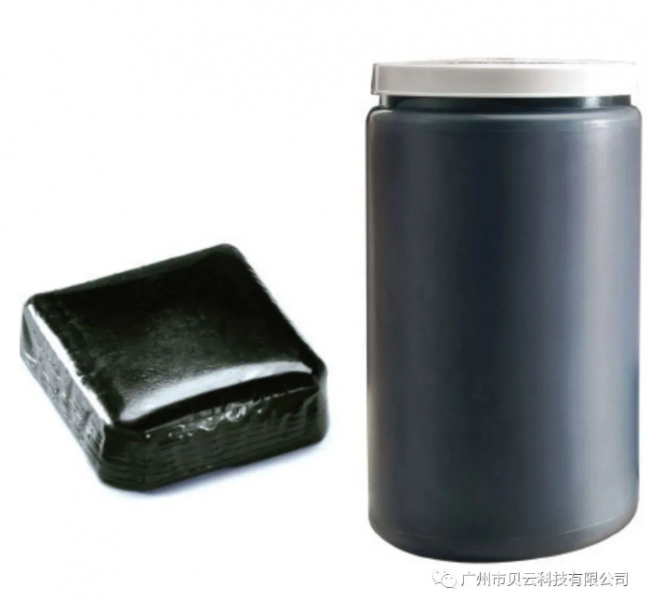

TouchDry® hot melt inks
Use Touch Dry® hot melt inks for easier use, larger capacity and longer shelf life
Touch Dry® hot melt ink does not pick materials and dries at one touch. There is no need to wait for drying or UV curing. It is an exquisite spray print that is impermeable and non-diffusive.

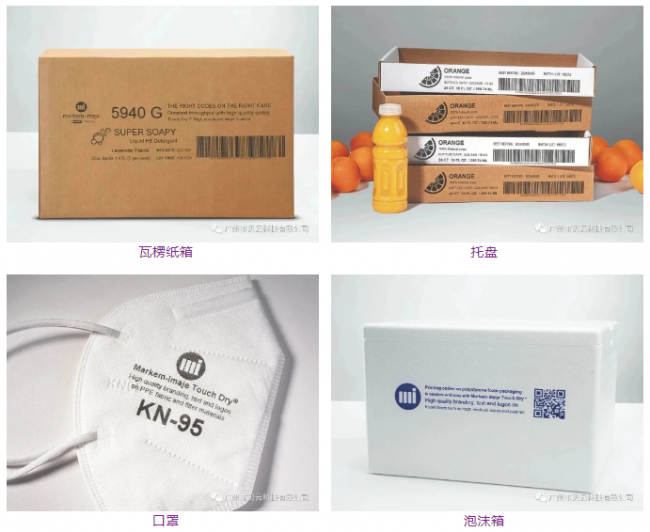

Provide unique high-coverage inks with higher contrast printing, and also provide a variety of color options. In addition to traditional cardboard large character spray printing, masks, sponges, non-woven fabrics and other applications are not a problem.
