The round bottle labeling machine uses a roll type sticker. The pasting process has the advantages of cleanliness and no mildew. After the label is applied, it is beautiful and durable and will not fall off on its own. What is the structure of a round bottle labeling machine? Let's analyze it together.
1. Put the roller. Used to place rolls using a manual control dial, usually with brakes that allow adjustable friction, the purpose of which is to adjust the speed and tension of the rolls to retain soft paper.
2. Buffer wheel. The ball is connected to a spring and can swing back and forth. This is to absorb the tension of the rollers when the machine is started and bring each roller into contact to prevent breakage.
3. Guide roller. It consists of upper and lower parts, and has rolling guidance and positioning functions.
4. Screwdriver roller. It consists of a set of movable wheels, usually 1 rubber and 1 metal, with the bottom passing between them. The function is to drive the roller to make the film adhere normally.
5. In order to make the driving wheel of the friction motor function at the bottom, the rotation of the wheel and the processing of the driving wheel do not interfere with each other, and the synchronous transmission is controlled by the device.
6. Peel off the plate. One end of the plate has an angle (typically less than 30°) to allow marking when changing direction through the peeling plate below, leaving the bottom and coming into contact with objects.
7. Label roller. Cover evenly on what you want to put underneath.
What are the categories of round bottle labeling machines?
The round bottle labeling machine has the top surface and the top arc surface of flat workpieces (such as boxes, books, plastic shells, etc.), and provides two options mainly based on efficiency, accuracy and bubble requirements. The original bottle of the round bottle labeling machine realizes functions such as semi-cylindrical shape and double-sided positioning paper on the surface of cylindrical and conical products (such as glass bottles, plastic bottles, etc.). There are mainly two types: vertical and horizontal.

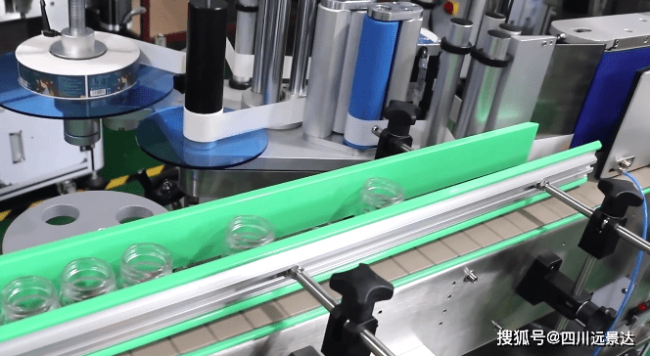

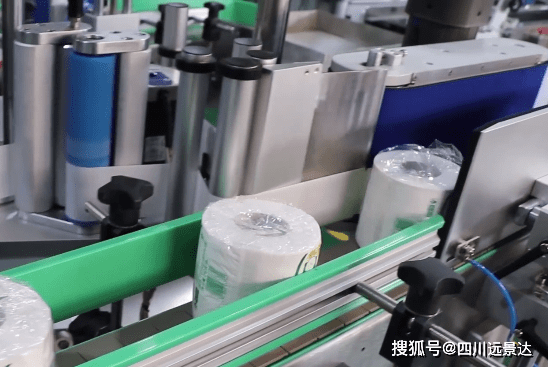

The round bottle labeling machine can match the original bottle equipment with the sides, side arc surfaces or films of workpieces (such as cosmetics bottles, boxes, etc.). The working principle of the original bottle sticker is actually not complicated. The bottles are sent to the chain plate, and the bottles pass through the distance adjustment device and enter the photoelectric sensor area in an equidistant array. The motor controls the rolling label to automatically win the bid after receiving the signal, and the label is automatically peeled off and pasted on the bottle. Another set of photoelectric sensors will limit the timely delivery of a cover sheet. During the continuous process of entering the bottle, each winning work will be correctly adhered to the bottle and automatically output after flattening the roller, completing the entire placement process.
What is the service scope of round bottle labeling machine?

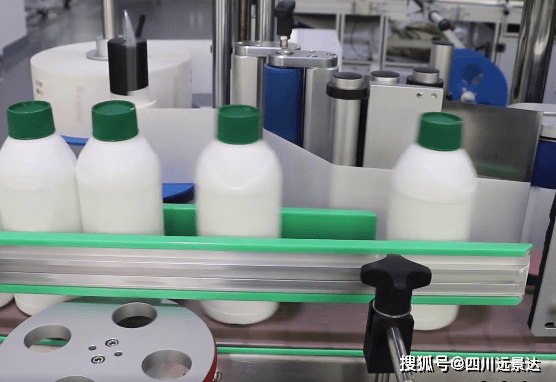

The round bottle labeling machine is mainly suitable for various automatic labeling of cylindrical bottle products such as medicine, daily chemical, and food. Adopt adjustable bottle separating device and high-precision and high-speed labeling device to adapt to product labels of different size.
